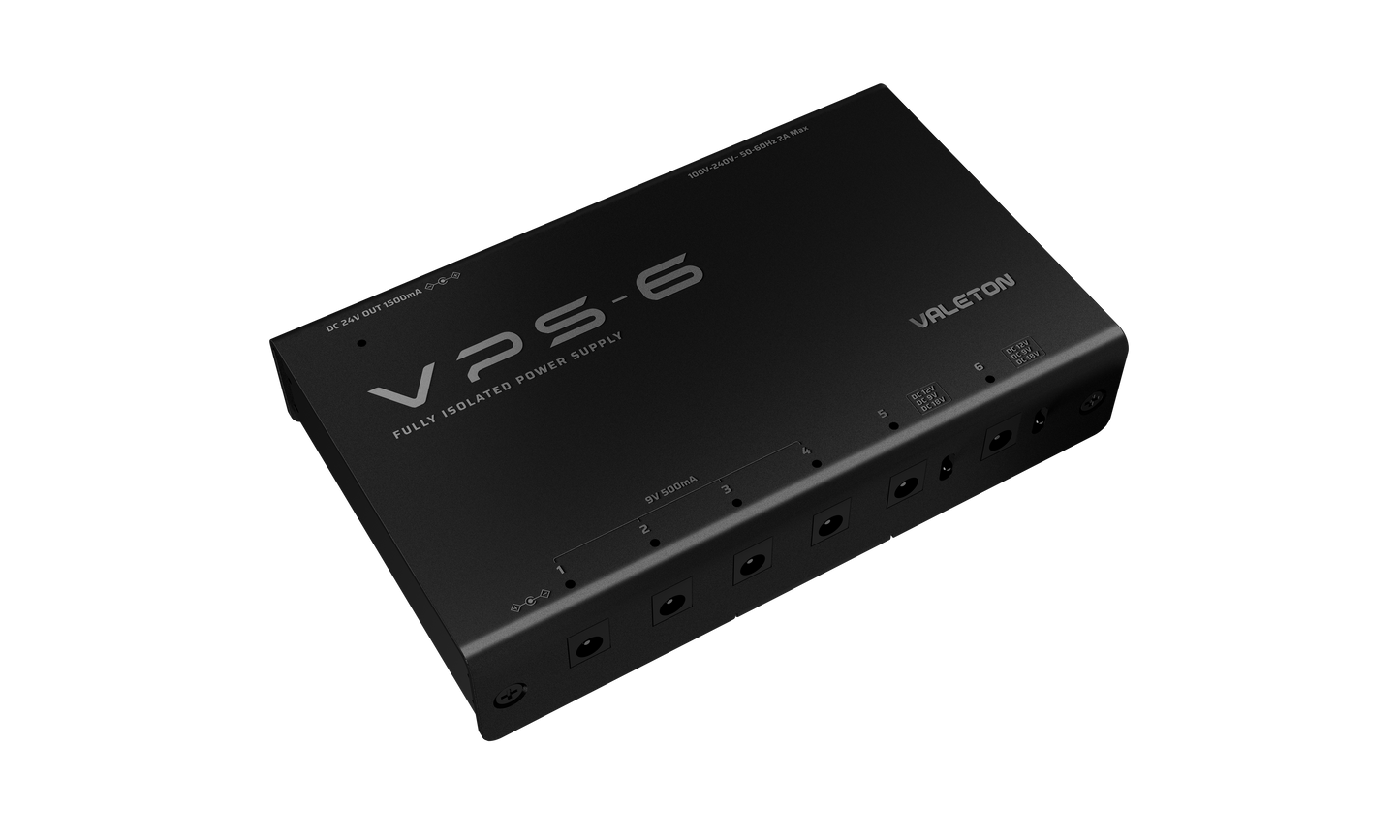

VPS-6

Available in the US warehouse for fast shipping.

Features

● 6 independent customized transformers to ensure clean and reliable power supply for each channel

● 24V DC OUT, connect other 24V DC input power supply to get more power outputs

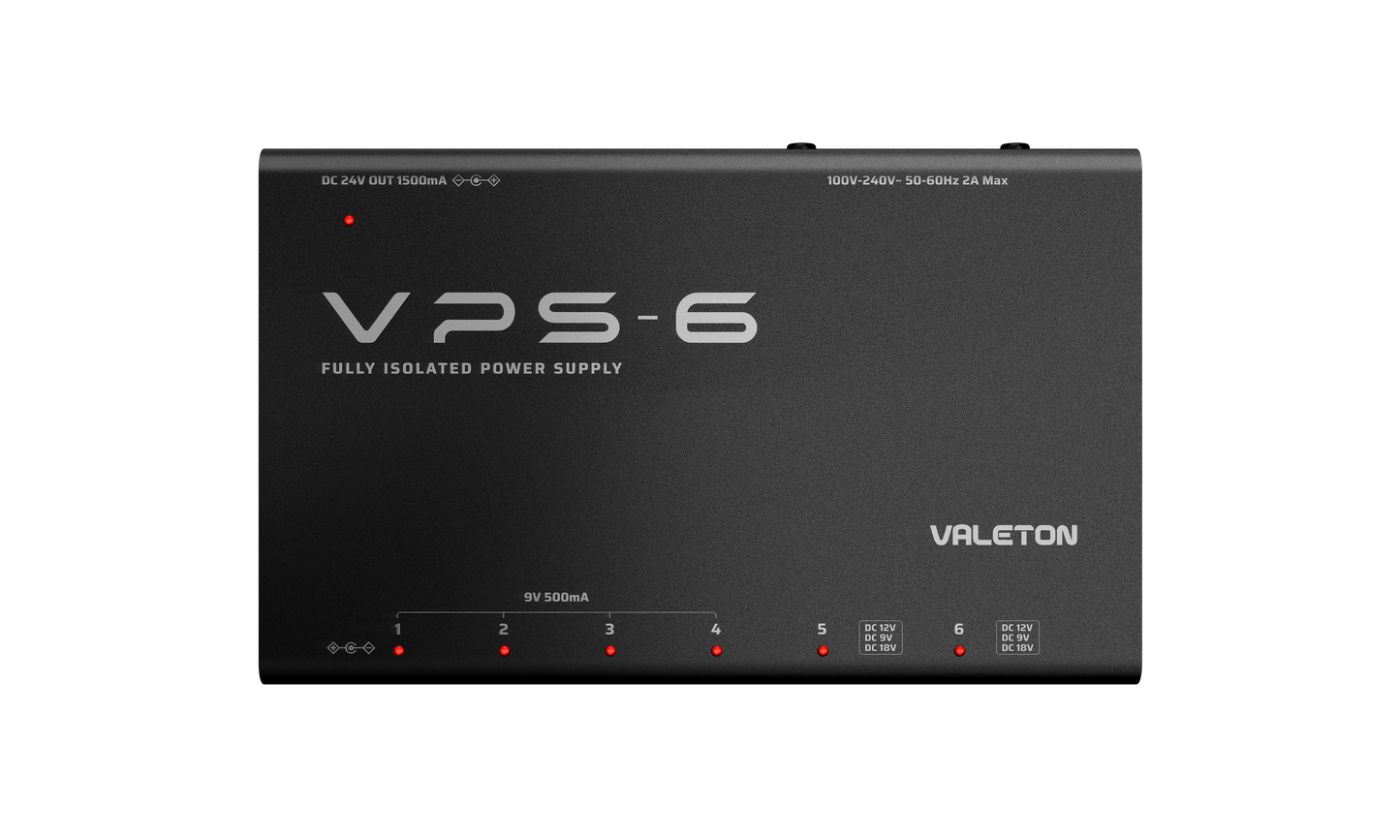

● Each channel has overload and short-circuit protection, and LED are used to indicate the current status,        which is convenient for troubleshooting and equipment protection

● Wide-range voltage input, self-adapting to the AC voltage of various countries and regions

● Energy efficient, compact design

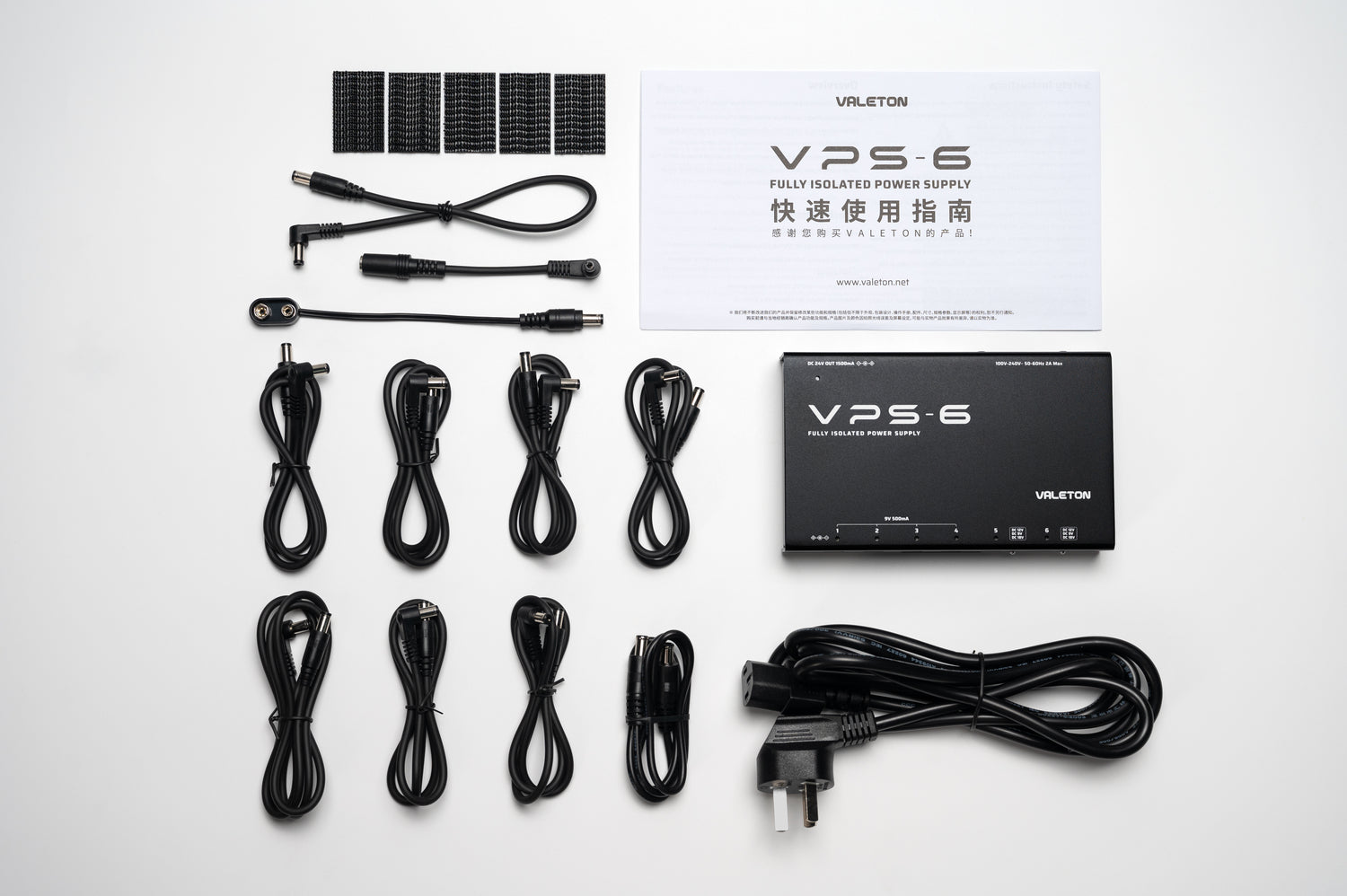

● Contains 9 power cables available for output:
  -6×9V cables, straight to Right-angled 60cm
  -1×9V cable, straight to Right-angled 30cm
  -1×9V cable, straight to Right-angled 90cm
    -1×24V cable, straight to straight-angled 60cm
● Contains an IEC power cable for powering VPS-6 in a specific region
● Contains a 9V battery connection cable and a polarity reversal cable

Specifications

Input: 100-240V AC 50/60Hz

9V DC Outputs: 4 x 9V DC, 500mA, center-negative

Adjustable Outputs: 2 x 9V DC (500mA)/12V DC (375mA)/18V DC (250mA), center-negative

24V DC Output: 1 x 24V DC, 1500mA, center-positive

Dimensions: 158mm (W) x 98mm (D) x 32mm (H)

Weight: 455g
